Exhausto
Chimney Fans |
 |
Model RS Chimney Fan
Fan Selection Tables
for
Wood and Gas Fired Fireplaces and Stoves
Use of the following fan
selection tables requires that you understand how to calculate or determine the
area of opening a fireplace opening and a flue system.
| |
Fireplaces (wood-fired) |
| |
Fireplace Opening in square inches |
| Flue
Size |
Max. 500 |
Max, 800 |
Max. 1200 |
Max. 1900 |
Max. 2500 |
Max. 3500 |
Max. 5000 |
Max. 6000 |
| 6 |
RS 9 |
RS 14 |
* |
* |
* |
* |
* |
* |
| 7 |
RS 9 |
RS 12 |
RS 16 |
* |
* |
* |
* |
* |
|
8 |
RS 9 |
RS 12 |
RS 14 |
RS 16 |
* |
* |
* |
* |
| 10 |
RS 9 |
RS 9 |
RS 12 |
RS 14 |
RS 16 |
RS 16 |
RS 16 |
* |
| 12 |
RS 9 |
RS 9 |
RS 12 |
RS 14 |
RS 16 |
RS 16 |
RS 16 |
* |
| 14 |
RS 12 |
RS 12 |
RS 12 |
RS 12 |
RS 16 |
RS 16 |
RS 16 |
* |
| 16 |
RS 12 |
RS 12 |
RS 12 |
RS 12 |
RS 16 |
RS 16 |
RS 16 |
* |
| 18 |
RS 12 |
RS 12 |
RS 12 |
RS 12 |
RS 16 |
RS 16 |
RS 16 |
* |
| 20 |
RS 12 |
RS 12 |
RS 12 |
RS 12 |
RS 16 |
RS 16 |
RS 16 |
* |
| 22 |
RS 12 |
RS 12 |
RS 12 |
RS 12 |
RS 16 |
RS 16 |
RS 16 |
* |
 |
The "opening in square
inches" refers to the fireplace or appliances over-all face opening.
Example : In a small wood burning fireplace, if the hearth opening is
18" x 24" with an 8" round clay liner in a brick and mortar chimney we
would...
Multiply the length and width, in this case 18" x 24" = 432 square
inches. Being less than 500, on the wood burning chart above, follow the column to the 8"
flue size. Highlighted in red, the chart shows an RS 9 to be the proper
size chimney fan for this application. |
| |
Fireplaces (gas-fired) |
| |
Fireplace Opening in square inches |
| Flue
Size |
Max. 500 |
Max, 800 |
Max. 1200 |
Max. 1900 |
Max. 2500 |
Max. 3500 |
Max. 5000 |
Max. 6000 |
| 6 |
RS 9 |
RS 12 |
RS 14 |
* |
* |
* |
* |
* |
| 7 |
RS 9 |
RS 12 |
RS 14 |
* |
* |
* |
* |
* |
| 8 |
RS 9 |
RS 9 |
RS 12 |
RS 16 |
* |
* |
* |
* |
| 10 |
RS 9 |
RS 9 |
RS 12 |
RS 12 |
RS 14 |
RS 16 |
RS 16 |
* |
| 12 |
RS 9 |
RS 9 |
RS 12 |
RS 12 |
RS 14 |
RS 16 |
RS 16 |
* |
| 14 |
RS 12 |
RS 12 |
RS 12 |
RS 12 |
RS 14 |
RS 16 |
RS 16 |
* |
| 16 |
RS 12 |
RS 12 |
RS 12 |
RS 12 |
RS 14 |
RS 16 |
RS 16 |
* |
| 18 |
RS 12 |
RS 12 |
RS 12 |
RS 12 |
RS 14 |
RS 16 |
RS 16 |
* |
| 20 |
RS 12 |
RS 12 |
RS 12 |
RS 12 |
RS 14 |
RS 16 |
RS 16 |
* |
| 22 |
RS 12 |
RS 12 |
RS 12 |
RS 12 |
RS 14 |
RS 16 |
RS 16 |
* |
Gas fireplaces will need additional controls...
PDS (Proven Draft Switch) Safety control that senses
a draft. A pressure sensor that ties into the log set or appliance
controls and would shut the gas off if the draft became negative.
EBC5 A pre/post purge control that would extend the
the fan cycle before and after gas is present for a fireplace or appliance.
| |
Stoves |
Fireplace Inserts |
Pizza Ovens |
| |
Door Opening in square inches |
| Flue
Size |
Max. 300 |
Max. 300 |
Max. 300 |
| 6 |
RS 9 |
RS 9 |
RS 9 |
| 7 |
RS 9 |
RS 9 |
RS 9 |
| 8 |
RS 9 |
RS 9 |
RS 12 |
| 9 |
RS 9 |
RS 9 |
RS 12 |
| 10 |
RS 9 |
RS 9 |
RS 12 |
| 12 |
RS 12 |
RS 12 |
RS 14 |
|
Wood stoves, coal stoves
and fireplace inserts
are usually sized to the smaller
of the Exhausto fans. |
|
CONVERSION
OF
Rectangular /
Square to Round Flues
Ex... 8 x 12"
clay liner is equivalent to
8 (dim.
A) - 12 (dim.
B) = 10 (10"
Round) |
|

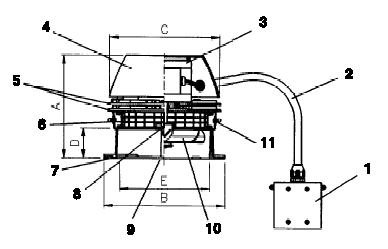

Fan Specifications
|
1 Junction Box
2 Conduit/cord
3 Motor
4 Motor Housing
5 Cooling Plates
6 Bird Screen
|
 |
7
Base Plate
8
Locking Nut
9
Inlet
10
Axial Vane
11
Hinges |
Call 1 800 685 8263 or
e-mail us with your
specs.
We will be happy to help
you choose the correct size chimney fan for your application.
|
