Weather Shield + Storm Guard = Storm Shield
STS & STS-TDW
Ideal cap for coastal locales and areas where wind and wind driven rain are prevalent.

StormShield Model STS
for single wall, chimney liners & Class-A insulated flue pipe

Click for Ordering &
Pricing Information
Split collar allows for a secure fit
Easy assembly  100% Stainless
Top w/ Storm Shield is easily removable
for access and cleaning
Storm Shield protects flue system
from most weather conditions

MODEL NUMBER
W/ 1/2 X 1/2 MESH
INSIDE FLUE
DIAMETER
MAX. OUTSIDE
FLUE DIAMETER

Storm Shield STS-3 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS3 STS-3-S5 3 12
Storm Shield STS-4 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS4 STS-4-S5 4 12
Storm Shield STS-5 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS5 STS-5-S5 5 17
Storm Shield STS-6 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS6 STS-6-S5 6 17
Storm Shield STS-7 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS7 STS-7-S5 7 17
Storm Shield STS-8 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS8 STS-8-S5 8 17
Storm Shield STS-9 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS9 STS-9-S5 9 20
Storm Shield STS-9.5 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS9.5 STS-9.5-S5 9.5 20
Storm Shield STS-10 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS10 STS-10-S5 10 20
Storm Shield STS-11 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS11 STS-11-S5 11 23
Storm Shield STS-12 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS12 STS-11.5-S5 11.5 23
Storm Shield STS-12 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS12 STS-12-S5 12 23
Storm Shield STS-13 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS13 STS-13-S5 13 23
Storm Shield STS-14 with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS14 STS-14-S5 14 23
StormShield chimney cap for single wall and insulated flue systems

CAUTION: An Air Cooled Cap must be used for Air Cooled Pipe.
DO NOT attempt to use a standard WeatherShield or StormShield for air cooled pipe.

Not sure if you have an air cooled pipe system... call or e-mail us.



StormShield Model STS-TDW
for air cooled double and triple wall flue pipe

Click for Ordering &
Pricing Information

Ideal cap for coastal locales and areas where wind and wind driven rain are prevalent.

Split collar allows for a secure fit
Easy assembly  100% Stainless
Top w/ Storm Shield is easily removable
for access and cleaning
Storm Shield protects flue system
from most weather conditions

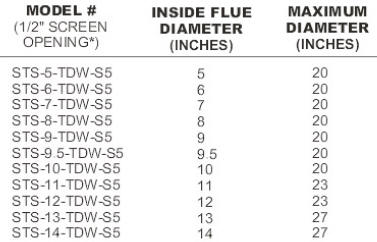

MODEL NUMBER
W/ 1/2 X 1/2 MESH
INSIDE FLUE
DIAMETER
MAX. OUTSIDE
FLUE DIAMETER

Storm Shield STS-5-TDW with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS5TDW STS-5-TDW-S5 5 20
Storm Shield STS-6-TDW with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS6TDW STS-6-TDW-S5 6 20
Storm Shield STS-7-TDW with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS7TDW STS-7-TDW-S5 7 20
Storm Shield STS-8-TDW with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS8TDW STS-8-TDW-S5 8 20
Storm Shield STS-9-TDW with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS9TDW STS-9-TDW-S5 9 20
Storm Shield STS-9.5-TDW with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS9.5TDW STS-9.5-TDW-S5 9.5 20
Storm Shield STS-10-TDW with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS10TDW STS-10-TDW-S5 10 20
Storm Shield STS-11-TDW with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS11TDW STS-11-TDW-S5 11 23
Storm Shield STS-12-TDW with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS12TDW STS-12-TDW-S5 12 23
Storm Shield STS-13-TDW with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS13TDW STS-13-TDW-S5 13 27
Storm Shield STS-14-TDW with 1/2 x 1/2 spark arrestor mesh for air cooled pipe... StormShield STS14TDW STS-14-TDW-S5 14 27
StormShield chimney cap for air cooled flue systems

Sizing for an air cooled StormShield

Air cooled flue pipe needs to be measured by its INSIDE measurement.

Typically... an air cooled flue system will consist of an inner and outer pipe(s) with an air space between them.  Some systems may have braces, wire, tabs or smaller openings between the layer(s) of pipe.  The distinguishing factor for this system is that the spacing channels from the top where the chimney cap would go all the way to the start of the flue system.

Note: All layers of pipe need to be at the same level for proper installation.  Most pipe can be trimmed or extended to accomplish this.


CAUTION: An Air Cooled Chimney Cap must be used for Air Cooled Pipe.
DO NOT attempt to use a standard STS StormShield Cap with air cooled pipe.



Air cooled double and triple wall flue systems need an air cooled chimney cap.

The inner pipe of an air cooled system is for smoke and flue gases.
... the larger surrounding outer pipe(s) will vary in size depending on the air space between the pipes and manufacturers design.
This air space needs to be vented to insure the flue systems proper function.
An air cooled pipe system uses the air space as an insulation value.  The more spacing between the pipes, the less heat to the outer pipe(s), and the closer one can build to the system.


Click the links below for some tips and explanations....

CHIMNEYS 101  Understand how a chimney works, and sometimes why it won't.
FIREWOOD     Know your wood... firewood do's and don'ts.



Go toDowndraft & Wind Loading Explanations.

      Go toSpark Arrestor Explanations.
