Oak Grilles & Registers
|
Trimline Style -
Flush No Frame
Model
|
|
|
Slim, trim, flush styling with the
cleanest look possible. Seats flat on the subfloor. May be installed
permanently or as a lift-out vent to permit cleaning of the duct throat.
Delicate looking, but tough. The frame is eliminated for a more
condensed size.
|
Flush installation for 3/4" thick
unfinished or pre-finished flooring
| ORDER SIZE |
FREE AREA |
OVERALL DIMENSIONS |
| (Duct Opening Inches) |
(Sq. Inches) |
No Frame
Model |
| 2-1/2 x 10 |
9 |
4-1/2 x 12 |
| 2-1/2 x 12 |
11-1/4 |
4-1/2 x 14 |
| 2-1/2 x 14 |
13-1/2 |
4-1/2 x 16 |
| 4 x 8 |
12 |
6 x 10 |
| 4 x 10 |
16 |
6 x 12 |
| 4 x 12 |
20 |
6 x 14 |
| 4 x 14 |
24 |
6 x 16 |
| 6 x 10 |
25 |
8 x 12 |
| 6 x 12 |
31-1/4 |
8 x 14 |
| 6 x 14 |
37-1/2 |
8 x 16 |
Don't see your size?
Call 1-800-685-8263 or e-mail us at
volkosupply@yahoo.com for a custom
quote.
|
 |
 |
|
Detail picture of our trimline flush no
frame two directional vents in White Oak |
Edge detail of our trimline flush no
frame vent. Note the glue joint construction for stability. |
|
Trimline Style -
Flush With Frame
Model
|
|
|
Slim, trim, flush styling with the
cleanest look possible. Seats flat on the subfloor. The lift-out vent
permits cleaning of the duct throat. Delicate looking, but tough.
Adjustable damper also available in the sizes listed.
Click for...
help in sizing wood vents |
| Standard frame for Flush with Frame
wood vents are made with 90 degree corners.
45 degree corners are an option and must me specified
when ordering. |
 |
Flush installation for 3/4" thick
unfinished or pre-finished flooring
| ORDER SIZE |
FREE AREA |
OVERALL DIMENSIONS |
| (Duct Opening Inches) |
(Sq. Inches) |
90˚ Frame |
45˚ Frame |
| 2-1/2 x 10 |
9 |
4-1/2 x 11-13/16 |
5 x 11-13/16 |
| 2-1/2 x 12 |
11-1/4 |
4-1/2 x 14-1/8 |
5 x 14-1/8 |
| 2-1/2 x 14 |
13-1/2 |
4-1/2 x 16 |
5 x 16 |
| 4 x 8 |
11 |
6-3/4 x 10-1/4 |
6-3/4 x 10-1/4 |
| 4 x 10 |
15 |
6-3/4 x 12-1/4 |
6-3/4 x 12-1/4 |
| 4 x 12 |
18-1/2 |
6-3/4 x 14-1/2 |
6-3/4 x 14-1/2 |
| 4 x 14 |
22 |
6-3/4 x 16-1/2 |
6-3/4 x 16-1/2 |
| 6 x 10 |
24-3/4 |
9 x 12-1/4 |
9 x 12-1/4 |
| 6 x 12 |
31 |
9 x 14-1/2 |
9 x 14-1/4 |
| 6 x 14 |
37 |
9 x 16-1/2 |
9 x 16-1/4 |
|
 |
 |
|
 |
 |
|
The edges of our flush with frame vents
are designed to accept hardwood flooring |
Note we can also do "gut only" if you
need for repairs or cabinet work. Call with your questions!
1-800-685-8263 or
email us! |
|
 |
|

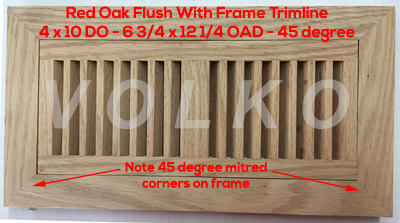

Another picture of our flush with frame
trimline vent, but this one with 45 degree corners. Please be sure to
specify what you want when ordering. |
Note Trimlines Can Also be one
Directional!
You can specify horizontal or
vertical (IE down or sideways)
|
 |
 |
| White Oak One Directional Flush with
Frame Vent - Floor application so dividers every 6" |
Detail of flush with frame one
directional vent - note rabbet cut for "gut" to sit into frame |
|
 |
|
Back Detail of a flush with frame one
directional trimline vent. Note how the louvers are dovetailed into
the gut portion. |
The charts show stock sizes for the most common duct openings.
Red oak, white oak
and maple (clear & paint grade) usually ship in 1-2 days.
All other woods
including ash, cherry, and even bamboo ship in 3-5 days.
Vents are sized by
the duct openings not the face of the vents. An attached metal damper is
available for all stock size vents if needed.
Wood vents are
available unfinished, clean sanded ready for on site finishing or pre-finished.
Optional factory
finishing in "clear" natural or stained and sealed to match pre-finished
manufactured floors.
Call 1-800-685-8263 or e-mail us at
volkosupply@yahoo.com
We can help size
and quote all your wood vent needs. Including customs.
Choose a link below to see specifications and sizes. Can be made custom
to any heating duct opening.
